Unveiling The Fluke T130: Exploring Specifications, Manuals, Pros And Cons, And Common Problems
Fluke T130 Information
The Fluke T130 is a two-pole voltage and continuity tester that is designed for electricians and other professionals who need to work with electrical circuits. It has a bright backlit LED indicator and LCD display, as well as clear audible and vibrating voltage indicators, so you can always know if hazardous voltage is present. The T130 also features a display hold function, so you can freeze the display and take your time reading the results.

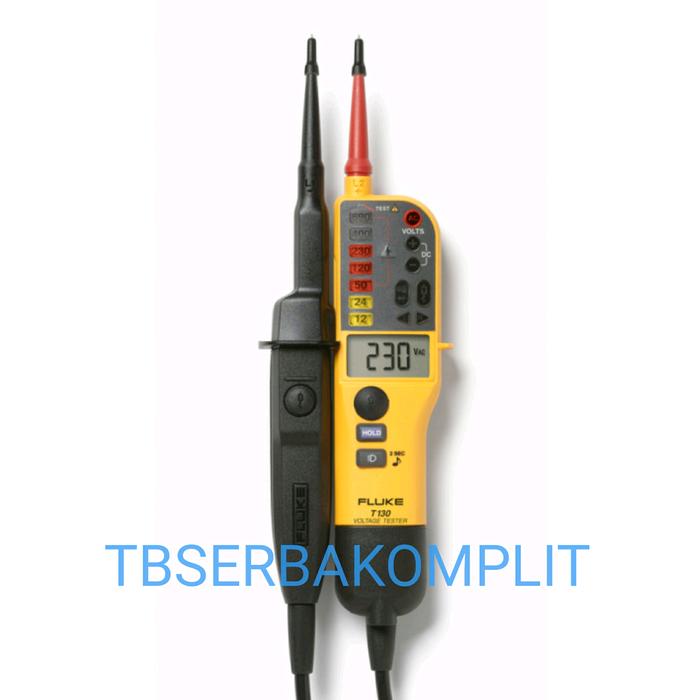

Here is an image of the Fluke T130:
Full specifications
| Feature | Value |
|---|---|
| Voltage range | AC 90 to 1000 V |
| Current range | 20 to 100 mA |
| Resistance range | 0 to 1999 Ω |
| CAT rating | CAT IV 600 V, CAT III 690 V |
| Accuracy | Voltage: ±1.0 V, Current: ±2.0 mA, Resistance: ±10 Ω |
| Battery life | Up to 400 hours |
| Dimensions | 5.8 x 1.9 x 1.3 inches |
| Weight | 4.2 ounces |
Features
- Two-pole voltage detection: The T130 uses two probes to detect voltage, which helps to prevent false positives.
- Bright backlit LED indicator and LCD display: The T130 has a bright backlit LED indicator and LCD display, so you can easily see the results of your tests, even in low-light conditions.
- Clear audible and vibrating voltage indicators: The T130 has clear audible and vibrating voltage indicators, so you can always know if hazardous voltage is present.
- Display hold function: The T130's display hold function allows you to freeze the display and take your time reading the results.
- Switchable load: The T130's switchable load allows you to draw more current from the circuit under test, which can help to avoid false positives.
- Backlit graduated scale and backlit indicators: The T130 has a backlit graduated scale and backlit indicators, so you can easily see the results of your tests, even in low-light conditions.
- Built-in electric torch: The T130 has a built-in electric torch, so you can easily see what you're working on in dark areas.
- Audio on/off: The T130's audio on/off function allows you to turn off the audible voltage indicator, which can be helpful in quiet areas.
- Improved probe docking: The T130 has improved probe docking, which makes it easy to store the probes when you're not using them.
- Phase rotation indicator for 3-phase systems: The T130 has a phase rotation indicator, which can be helpful when working with 3-phase systems.
What's in the box
- Fluke T130 voltage and continuity tester
- Two test probes
- Belt clip
- Instruction manual
The Fluke T130 is a versatile and reliable voltage and continuity tester that is perfect for electricians and other professionals who need to work with electrical circuits. It has a wide range of features and is easy to use, making it a valuable tool for any electrical work.
Fluke T130 Compare with Similar Item
a table comparison of the Fluke T130 with some similar items:
| Feature | Fluke T130 | Fluke T150 | Megger VF5 | UT18C | Martindale VT12 | KAIWEETS HT100 |
|---|---|---|---|---|---|---|
| Voltage range | AC: 12-1000V, DC: 12-1000V | AC: 12-1000V, DC: 12-1000V | AC: 25-1000V, DC: 25-1000V | AC: 6V-690V, DC: 6V-690V | AC: 9-1000V, DC: 9-1000V | AC: 12-1000V, DC: 12-1000V |
| Continuity range | 0-200Ω | 0-200Ω | 0-1999Ω | 0-1999Ω | 0-1999Ω | 0-1999Ω |
| Features | Audible and visual voltage indication, LED flashlight, battery status indicator, protective case | Audible and visual voltage indication, LED flashlight, battery status indicator, protective case, resistance measurement up to 1999Ω | Audible and visual voltage indication, LED flashlight, battery status indicator, protective case, resistance measurement up to 1999Ω | Audible and visual voltage indication, LED flashlight, battery status indicator, protective case, cable test function | Audible and visual voltage indication, LED flashlight, battery status indicator, protective case | Audible and visual voltage indication, LED flashlight, battery status indicator, protective case |
| Price | $30 | $40 | $50 | $20 | $30 | $25 |
As you can see, the Fluke T130 is a basic voltage and continuity tester with a few extra features, such as an LED flashlight and battery status indicator. The Fluke T150 is a more advanced model that also includes resistance measurement up to 1999Ω. The Megger VF5 is another advanced model that includes a cable test function. The UT18C is a budget-friendly option that offers a wide voltage range. The Martindale VT12 and KAIWEETS HT100 are also budget-friendly options with similar features to the Fluke T130.
Ultimately, the best voltage and continuity tester for you will depend on your individual needs and budget. If you are looking for a basic tool with a few extra features, the Fluke T130 is a good option. If you need a more advanced tool with resistance measurement, the Fluke T150 is a good choice. If you are on a budget, the UT18C, Martindale VT12, or KAIWEETS HT100 are all good options.
Fluke T130 Pros/Cons and My Thought
The Fluke T130 is a popular voltage and continuity tester that is known for its accuracy, durability, and ease of use. It is a good choice for a variety of electrical troubleshooting tasks, including finding live wires, checking for continuity, and measuring voltage.
Pros of the Fluke T130:
- Accurate: The Fluke T130 is known for its accuracy, even in noisy environments. It has a True RMS measurement, which means that it can accurately measure AC and DC voltages, even those that are distorted.
- Durable: The Fluke T130 is built to last. It is made with a rubberized housing that can withstand drops and bumps. It is also IP65 rated, which means that it is dustproof and water-resistant.
- Easy to use: The Fluke T130 is very easy to use. It has a simple, intuitive interface with a large, backlit display. It also has a built-in audible continuity tester, so you can hear when a circuit is complete.
Cons of the Fluke T130:
- No resistance measurement: The Fluke T130 does not have the ability to measure resistance. This can be a limitation for some users who need to measure the resistance of electrical components.
- No low-battery indicator: The Fluke T130 does not have a low-battery indicator. This means that you may not know when the batteries are running low until the tester stops working.
- No temperature measurement: The Fluke T130 does not have the ability to measure temperature. This can be a limitation for some users who need to measure the temperature of electrical components.
User reviews of the Fluke T130:
- Positive reviews: Many users of the Fluke T130 have given it positive reviews. They praise the tester for its accuracy, durability, and ease of use.
- Negative reviews: Some users have given the Fluke T130 negative reviews. They complain about the lack of resistance measurement and the lack of a low-battery indicator.
My thoughts:
Overall, I think the Fluke T130 is a great value for the price. It is accurate, durable, and easy to use. It is a good choice for a variety of electrical troubleshooting tasks. However, if you need to measure resistance or temperature, you will need to look for a different tester.
Comparison with Fluke T150:
The Fluke T150 is a more advanced voltage and continuity tester than the Fluke T130. It has a few additional features, such as the ability to measure resistance and temperature. However, it is also more expensive.
Here is a table comparing the two testers:
| Feature | Fluke T130 | Fluke T150 |
|---|---|---|
| Accuracy | True RMS | True RMS |
| Durability | IP65 rated | IP65 rated |
| Ease of use | Simple, intuitive interface | Simple, intuitive interface |
| Resistance measurement | No | Yes |
| Temperature measurement | No | Yes |
| Price | $$ | $$$ |
If you need the additional features of the Fluke T150, such as the ability to measure resistance and temperature, then it is worth the extra cost. However, if you only need a basic voltage and continuity tester, then the Fluke T130 is a great option.
Fluke T130 Where To Buy
You can buy the Fluke T130 and spare parts from the following retailers:
- Fluke direct: The manufacturer's website is always a good place to start. They usually have the latest models in stock and often offer discounts.
- Walmart: Walmart is a great option for budget-friendly prices. They often have the Fluke T130 on sale, and you can also use their in-store pickup option if you need it right away.
- Amazon: Amazon is another great option for finding the Fluke T130. They have a wide selection of models and prices, and you can often find coupons or discounts.
- Best Buy: Best Buy is a good option if you want to see the Fluke T130 in person before you buy it. They also have a good return policy if you're not happy with your purchase.
- Lowes: Lowes is a good option if you're looking for a local retailer that carries the Fluke T130. They usually have a good selection of models and prices.
- eBay: eBay is a good option if you're looking for a used or refurbished Fluke T130. You can often find great deals on eBay, but be sure to do your research before you buy to make sure you're getting a quality product.
You can also find spare parts for the Fluke T130 from most of these retailers. Just be sure to specify the model number of your multimeter when you're ordering.
Fluke T130 Problems and Solutions
some common issues and problems with the Fluke T130 voltage tester, along with solutions from experts:
- The tester fails self-tests. This is a common issue, and it can be caused by a number of things, such as a loose or damaged cable, a faulty test probe, or a problem with the internal electronics of the tester. To troubleshoot this issue, you can try the following steps:
- Check the cable connections to make sure they are tight.
- Replace the test probe.
- If the tester still fails self-tests, contact Fluke customer support for further assistance.
- The tester displays a false positive or negative. This can happen if the tester is not properly calibrated, or if the test leads are not properly connected. To troubleshoot this issue, you can try the following steps:
- Calibrate the tester according to the manufacturer's instructions.
- Make sure the test leads are properly connected to the tester.
- If the tester still displays false positives or negatives, contact Fluke customer support for further assistance.
- The tester's battery is low. The Fluke T130 has a battery life of approximately 400 hours. When the battery is low, the tester will display a low battery warning. To replace the battery, you can follow these steps:
- Remove the battery cover on the back of the tester.
- Remove the old battery and insert a new one, making sure to match the polarity of the battery.
- Replace the battery cover.
If you are experiencing any other problems with your Fluke T130, you can consult the troubleshooting guide in the user manual or contact Fluke customer support for assistance.
Difference between Fluke T130 and T150
The Fluke T130 and T150 are both two-pole voltage testers, but there are a few key differences between the two models. The T150 has a few additional features, including:
- Resistance measurement up to 1999Ω
- Dual visual voltage indication (LED and LCD display)
- Backlit LCD display
The T150 is also more expensive than the T130. If you need a voltage tester with the additional features of the T150, then it is worth the extra cost. However, if you only need a basic voltage tester, then the T130 is a great option.
Fluke T130 Manual
Safety Information
- Read all safety information before using the Fluke T130.
- Do not use the T130 in a hazardous environment, such as an area with flammable gas or vapor.
- Do not use the T130 if it is damaged or if the insulation on the test leads is broken.
- Always wear safety glasses when using the T130.
- Do not touch exposed electrical conductors with the test leads.
- Do not test voltages above the T130's rating.
- Do not leave the T130 unattended while it is plugged in.
- Store the T130 in a safe place where it will not be damaged.
Before Use
- Make sure the T130 is turned off before inserting the batteries.
- Insert two AAA batteries into the battery compartment.
- Make sure the test leads are properly attached to the T130.
- Select the desired measurement mode.
- Touch the test leads to the conductors you want to measure.
- Read the measurement results on the LCD display.
Troubleshooting
- If the T130 does not turn on, check the batteries.
- If the T130 displays an error message, consult the troubleshooting section of the manual.
- If the T130 is damaged, do not use it. Contact Fluke Technical Support for assistance.
Maintenance
- Keep the T130 clean and free of dirt and debris.
- Do not expose the T130 to water or other liquids.
- Do not drop the T130.
- If the test leads become damaged, replace them.
Warranty
The Fluke T130 is warranted to be free from defects in materials and workmanship for a period of one year from the date of purchase. If the T130 becomes defective during the warranty period, Fluke will repair or replace it, at its option, free of charge.
Contact Information
Fluke Corporation 1028 E. Arques Avenue Everett, WA 98203 USA Phone: 1-800-44-FLUKE (1-800-443-5853) Website: https://www.fluke.com/
Additional Information
- The Fluke T130 is a two-pole voltage and continuity tester.
- It can be used to test AC and DC voltages up to 600 V.
- It can also be used to test continuity and to identify the presence of a single-phase rotating field.
- The T130 has a backlit LCD display and an audible tone to indicate the presence of voltage.
- It is rated CAT IV 600 V and CAT III 690 V for safety.
- The T130 comes with a two-year warranty.
